| Frame | Aluminum 24" Frame |
|---|
| Fork | Rigid 24" Alloy |
|---|
| Shifter Rear | Shimano Sl-M315, 7sp, Trigger Shifter |
|---|---|
| Rear Derailleur | Shimano TY300, 7sp |
| Cassette | Shimano MF-TZ500-7, 14T-34T, 7sp, Freewheel |
| Chain | KMC Z7 |
| Crankset | Alloy 3pc, 140mm, 28T Narrow Wide |
| Bottom Bracket | Sealed Bearing , ST 68mm |
| Front Brake | C-Star, resin Pads, Mechanical Disc |
|---|---|
| Front Brake Rotor | 160mm, 6-bolt |
| Rear Brake | C-Star, resin Pads, Mechanical Disc |
| Rear Brake Rotor | 160mm, 6-bolt |
| Brake Levers | C-Star Alloy Jr. levers w/reach adjust |
| Handle Bar | Alloy Jr. Riser, 600mm, 30 Rise |
|---|---|
| Stem | Alloy 45mm Length, 31.8mm Clamp |
| Seat Post | Norco Alloy 27.2mm, 250mm |
| Seat Post Clamp | Alloy QR |
| Headset | External Cup Ball Bearing |
| Saddle | Norco Youth Saddle |
| Grips | Norco Youth Grip |
| Pedals | Jr. MTB Flat, 9/16 |
| Front Hub | Formula DC-1420, 9x100mm QR, 28h, 6-bolt |
|---|---|
| Rear Hub | Formula DC31-RQR, 9x135mm QR, Freewheel, 28h, 6-bolt |
| Spokes/Nipples | Stainless Steel 14g - Black |
| Rims | Aluminum DW, 28h, 24" MTB |
| Front Tire | CY Sparrow, 24x2.25, Wire |
| Rear Tire | CY Sparrow, 24x2.25, Wire |

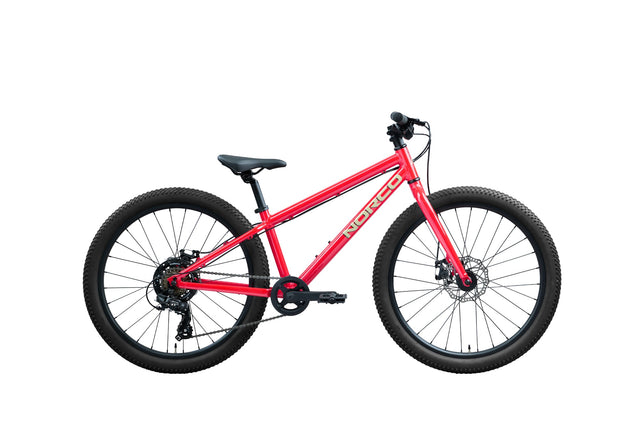

Specifications are subject to change without notice and may not be exactly as shown in photo.
