| Frame | 6061 Alloy, 120mm Travel, UDH, Ride Alignedâ„¢ |
|---|
| Fork | Manitou JUNIT Sport 20", 120mm Travel, 40mm Offset, alloy stanchion |
|---|---|
| Rear Shock | X-Fusion 02 Pro R, 170x30mm Standard, A-Tune Soft |
| Shifter Rear | microSHIFT Advent, 9sp |
|---|---|
| Rear Derailleur | microSHIFT Advent, 9sp, Short Cage Clutch |
| Cassette | microSHIFT Advent, 11-38T, 9sp |
| Chain | KMC X9, 9sp |
| Crankset | Prowheel Junior Alloy, 28T, 127mm |
| Bottom Bracket | Prowheel Cartridge BB |
| Front Brake | Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade |
|---|---|
| Front Brake Rotor | Tektro TR160-22, 160mm, 6-bolt |
| Rear Brake | Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade |
| Rear Brake Rotor | Tektro TR160-22, 160mm, 6-bolt |
| Brake Levers | Tektro HD-J285 |
| Handle Bar | Norco 6061 Alloy DB , 660mm, 20mm Rise |
|---|---|
| Stem | Norco 6061, 35mm Length, 31.8mm Clamp |
| Seat Post | TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune |
| Seat Post Clamp | Norco Alloy Nutted Clamp, 34.9mm ID |
| Headset | Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40) |
| Saddle | WTB Solano Med, 142x240 mm, Steel Rails |
| Grips | Norco Youth Lockon, 115mm Length |
| Front Hub | Formula DC-511, 15x110mm Boost, 28h, 6-bolt |
|---|---|
| Rear Hub | Formula DC-3248,12x148mm Boost, HG, 28h, 6-bolt |
| Rims | WTB TCS 2.0, 27mm ID, 28H |
| Front Tire | Maxxis Minion DHF, EXO, 20"x2.4", Folding |
| Rear Tire | Maxxis Minion DHR II, EXO, 20" x 2.3", Folding |

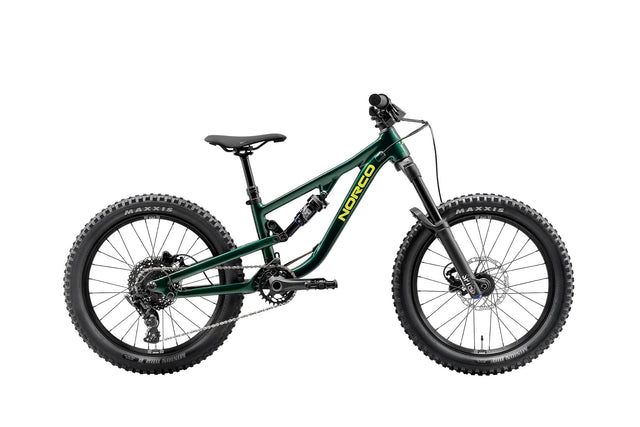

Specifications are subject to change without notice and may not be exactly as shown in photo.
