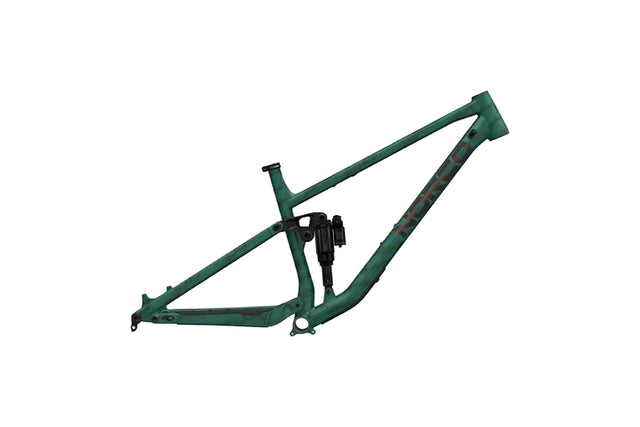

| Frame | Aluminum Frame, 150mm Travel, UDH| R-Wheel Size Adj | Ride Alignedâą |
|---|
| Fork | RockShox Lyrik Base, 160mm Travel, 44mm offset |
|---|---|
| Rear Shock | RockShox Super Deluxe Select D1, 205x60mm TR |
| Shifter Rear | Shimano Deore XT SL-M8200, 12sp |
|---|---|
| Rear Derailleur | Shimano Deore XT RD-M8200, SGS, 12sp |
| Cassette | Shimano Deore XT CS-M8200, 10-51T, 12sp |
| Chain | Shimano Deore XT CN-M8100, 12sp |
| Crankset | Shimano Deore XT M8200, 30T, 55CL, 165mm (S1,S2) -170mm (S3,S4,S5) |
| Bottom Bracket | Shimano BB-MT501, BSA 73mm |
| Front Brake | Shimano Deore XT BR-M8200, Metallic pads |
|---|---|
| Front Brake Rotor | Shimano SM-RT64, 203mm, C-lock |
| Rear Brake | Shimano Deore XT BL-M8200, Metallic pads |
| Rear Brake Rotor | Shimano SM-RT64, 180mm, C-lock |
| Brake Levers | Shimano Deore XT BR-M8220 |
| Handle Bar | Norco 6061 DB Alloy, 760mm - 25mm Rise (S1), 780mm - 25mm Rise (S2), 800mm- 35mm Rise (S3,S4,S5) |
|---|---|
| Stem | 6061 Alloy, 40mm Length, 35mm Clamp |
| Seat Post | TranzX YSI163, 31.6mm, 150 (S1) -170mm (S2,S3) -200mm (S4) -230mm (S5) |
| Seat Post Clamp | Norco Alloy Nutted Clamp, 34.9mm ID |
| Headset | FSA No. 57 ZS, Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 ) |
| Saddle | WTB Volt Med, 142x265 mm |
| Grips | Norco Lock On, 130 length |
| Front Hub | Shimano HB-M8210-B,15x110mm Boost, 32H, C-lock |
|---|---|
| Rear Hub | Shimano FH-M8210-B, 12x148mm Boost, Micro Spline, 32H, C-lock |
| Rims | WTB ST i30 TCS 2.0 ,30 mm, 32H, 29"-27.5" F/R (S1,S2) - 29" (S3,S4,S5) |
| Front Tire | Schwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5" |
| Rear Tire | Schwalbe Magic Mary, Gravity Pro SG, Radial, 27.5x2.4" (S1,S2) - 29" (S3,S4,S5) |
Specifications are subject to change without notice and may not be exactly as shown in photo.
